Position Indicators for Diaphragm and Angle Seat Valves
Explosion Proof Diaphragm Valve Indicator
| • | Power Supply | : | .DC 12V-48V |
| • | Instalation | : | M26 x 1,5 - M22 x1,5 |
| • | Stroke Range | : | 10-30 mm |
| • | Temperature | : | -20 ° C ..50 ° C |
| • | Ex-proof | : | Exia IICT5Ga |
| • | Ui | : | 36V |
| • | Ii | : | 100A |
| • | Pi | : | 0,98 W |
| • | Ci | : | 0 μF |
| • | Li | : | 0 mH |
Diaphragm-Angle Seat Valve Indicator
| • | Power Supply | : | .DC 12V-48V |
| • | Instalation | : | M26 x 1,5 - M22 x1,5 |
| • | Stroke Range | : | 10-30 mm |
| • | Temperature | : | -20 ° C ..50 ° C |
| • | Cable Interface | : | M16 x 1,5 |
| • | Easy instalation,can be installed on valves directly | ||
| • | Cam Switches can change positions according to valve stroke | ||
| • | The LED displays the readiness of the run and possition feedback | ||
| • | Anti-Splash water compact shell | ||
| • | Can expant a varity of feedback signals | ||

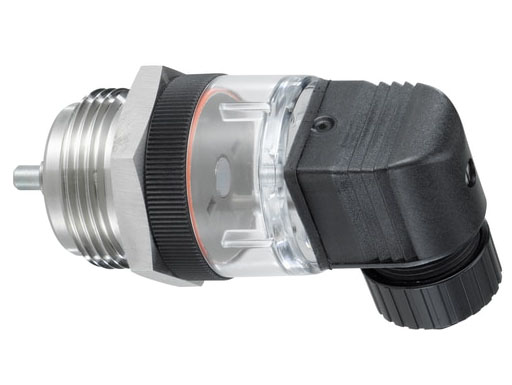

Limit switch open position
The electrical position feedback is designed for integrated mounting on CLASSIC Series process valves .
Due to its simple and a very compact design, the feedback can easily be mounted on a valve.
Valve positions are remotely reported electrically according to switch type: open, closed.
Due to its simple and a very compact design, the feedback can easily be mounted on a valve.
Valve positions are remotely reported electrically according to switch type: open, closed.
KEY FEATURES:
| • | Contact-Free magnetic measuring design |
| • | Colored LED light feedback of valve position visible for 360° |
| • | Compact and robust design |
| • | Hermetically sealed |
| • | Easy mounting without additional adapter kits |
| • | 360° adjustable mounting position |
| • | High chemical resistance |
| • | For single and double acting valve control functions |
| • | Indicates one or two positions |
| • | ISO 9001 Quality |
| • | Hygienic Design |
