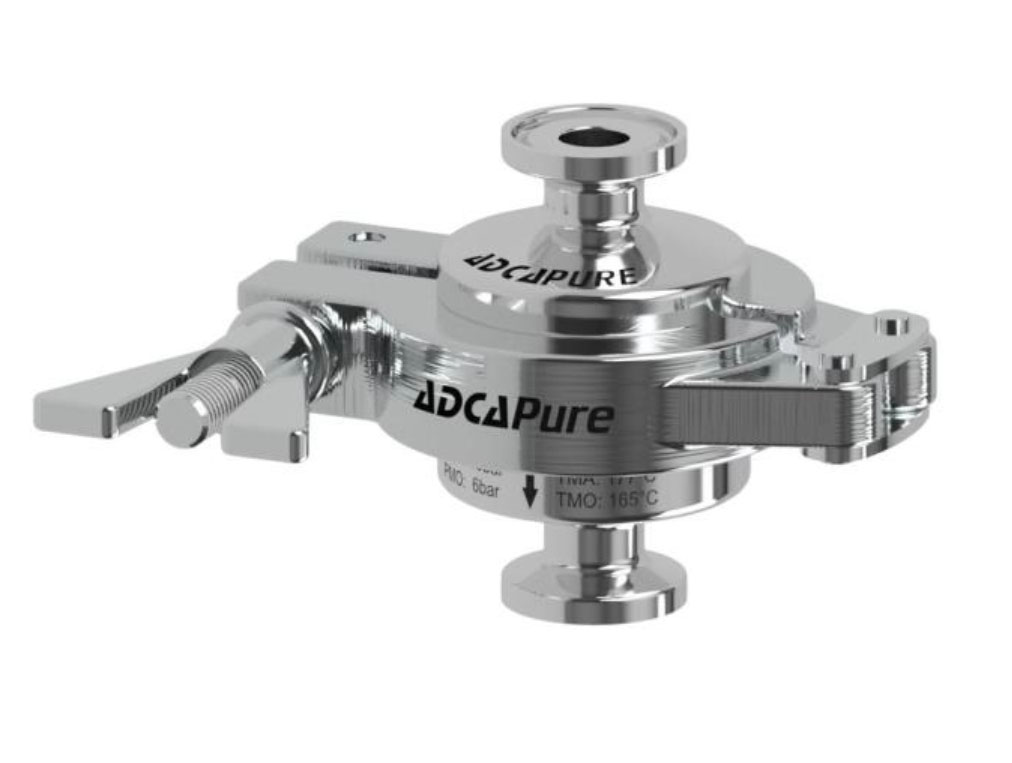

Balance Pressure TSS6

  • Overview
  • Description
  • Flowrate Capacity
•  Available Sizes : 1/2", 3/4", 1", 1"
•  Connections : ASME BPE, DIN and ISO.Clamp ferrules or tube weld ends
Body Material : 316L ASME BPE
•  Thermostat : AISI 316 L/1.4404
•  Gaskets : PTFE/Envelope
Surface Finish : SF1,According to ASME BPE
•  PMA : 10 bar.
•  TMA : 177 "C.
The TSS6 all stainless steel thermostaticsteam traps and air ventsare specifically designed for use in reactors, sterilizers and distribution lines in clean and pure steam systems. Their small size makes them ideal for use with a wide variety of these equipments.
MAIN FEATURES
Modulating discharge.
Wide range of connections options.
Excellent air discharge.
Simple and compact design.
FLOW RATE CAPACITY (kg/h)
Model
Size
Differential Pressuse (bar)
0,2
0,3
0,5
1,0
1,5
2,0
3,0
4,0
6,0
TSS6(A) 1/2" to 11/2”
320
380
410
550
680
909
1081
1199
1403
TSS6(B) 1/2" to 11/2” 470
495
518
697
792
1026
1231
1436
1682
A= Condensate dischargeat 5 C below saturation temperature. B= Cold water capacity at about 20 C

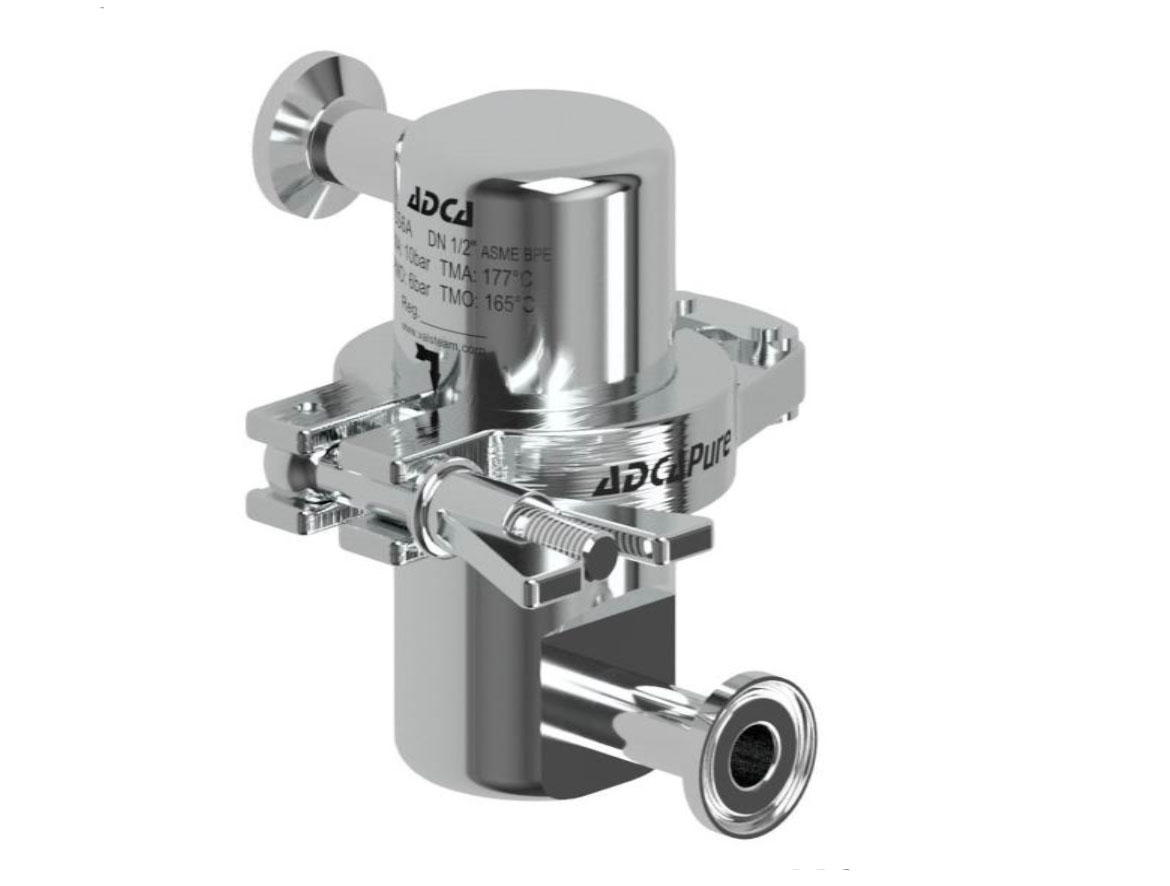

Balance Pressure TSS6A

  • Overview
  • Description
  • Flowrate Capacity
•  Available Sizes : 1/2", 3/4".
•  Connections : ASME BPE, DIN and ISO.Clamp ferrules or tube weld ends
Body Material : 316L ASME BPE
•  Thermostat : AISI 316 L/1.4404
•  Gaskets : PTFE/Envelope
Surface Finish : SF1,According to ASME BPE
•  PMA : 10 bar.
•  TMA : 177 "C.
The TSS6A all stainless steel thermostaticsteam traps and air ventsare specifically designed for use in reactors, sterilizers and distribution lines in clean and pure steam systems. Their small size makes them ideal foruse with a wide variety of these equipments.
MAIN FEATURES
Modulating discharge.
Wide range of connections options.
Excellent air discharge.
Simple and compact design.
FLOW RATE CAPACITY (kg/h)
Model
Size
Differential Pressuse (bar)
0,2
0,3
0,5
1,0
1,5
2,0
3,0
4,0
6,0
TSS6Α(A) 1/2" to 3/4"
320
380
410
550
680
909
1081
1199
1403
TSS6Α(B) 1/2" to 3/4” 470
495
518
697
792
1026
1231
1436
1682
A= Condensate dischargeat 5 C below saturation temperature. B= Cold water capacity at about 20 C

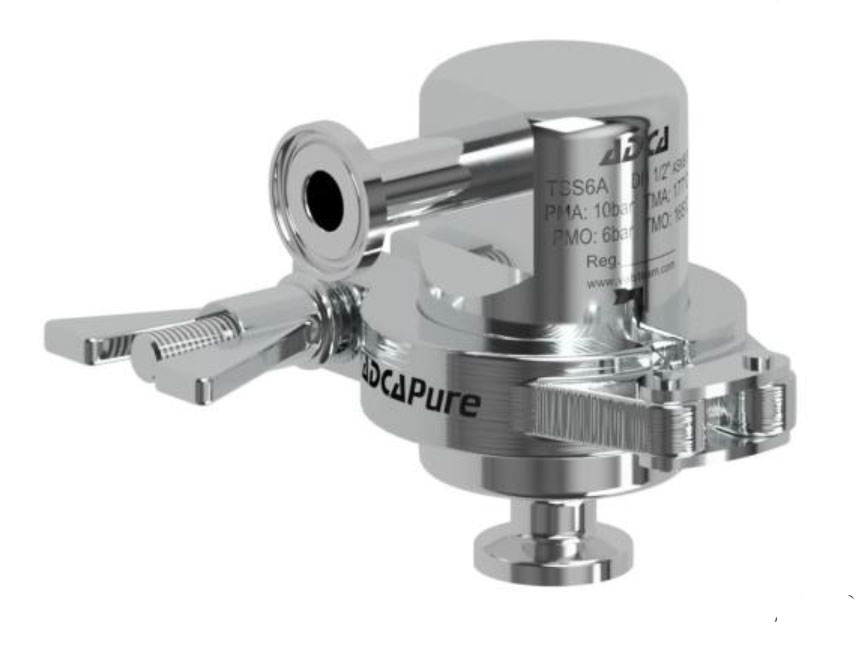

Balance Pressure TSS6AO

  • Overview
  • Description
  • Flowrate Capacity
•  Available Sizes : 1/2", 3/4".
•  Connections : ASME BPE, DIN and ISO.Clamp ferrules or tube weld ends
Body Material : 316L ASME BPE
•  Thermostat : AISI 316 L/1.4404
•  Gaskets : PTFE/Envelope
Surface Finish : SF1,According to ASME BPE
•  PMA : 10 bar.
•  TMA : 177 "C.
The TSS6 all stainless steel thermostaticsteam traps and air ventsare specifically designed for use in reactors, sterilizers and distribution lines in clean and pure steam systems. Their small size makes them ideal for use with a wide variety of these equipments.
MAIN FEATURES
Modulating discharge.
Wide range of connections options.
Excellent air discharge.
Simple and compact design.
FLOW RATE CAPACITY (kg/h)
Model
Size
Differential Pressuse (bar)
0,2
0,3
0,5
1,0
1,5
2,0
3,0
4,0
6,0
TSS6AO(A) 1/2" to 11/2”
320
380
410
550
680
909
1081
1199
1403
TSS6AO(B) 1/2" to 11/2” 470
495
518
697
792
1026
1231
1436
1682
A= Condensate dischargeat 5 C below saturation temperature. B= Cold water capacity at about 20 C

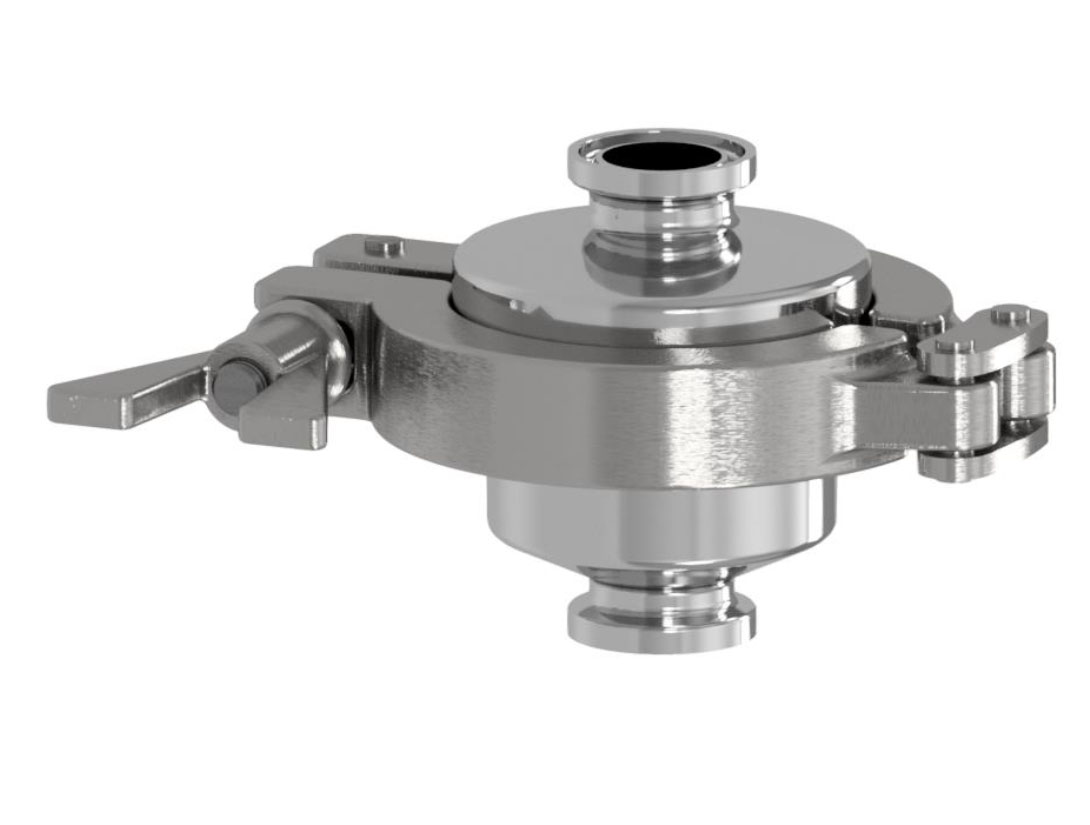

Balance Pressure TSS6H

  • Overview
  • Description
  • Flowrate Capacity
•  Available Sizes : 1/2", 3/4", 1", 1"
•  Connections : ASME BPE, DIN and ISO.Clamp ferrules or tube weld ends
Body Material : 316L ASME BPE
•  Thermostat : AISI 316 L/1.4404
•  Gaskets : PTFE/Envelope
Surface Finish : SF1,According to ASME BPE
•  PMA : 10 bar.
•  TMA : 177 "C.
The TSS6Hall stainless steel thermostaticsteam traps and air ventsare specifically designed for use in reactors, sterilizers and distribution lines in clean and pure steam systems. Their small size makes them ideal for use with a wide variety of these equipments.The thermostatic element is very sensitive and designedto open with a minimum sub-cooling of around 2ºC related to the saturated steam temperature.
MAIN FEATURES
Modulating discharge.
Wide range of connections options.
Excellent air discharge.
Simple and compact design.
FLOW RATE CAPACITY (kg/h)
Model
Size
Differential Pressuse (bar)
0,2
0,3
0,5
1,0
1,5
2,0
3,0
4,0
6,0
TSS6H(A) 1.0" to 11/2” 780
810
915
1188
1412
1840
2305
2970
3962
TSS6H(B) 1.0" to 11/2” 1291
1378
1477
2052
2531
2873
3529
4104
4966
A= Condensate dischargeat 5 C below saturation temperature. B= Cold water capacity at about 20 C

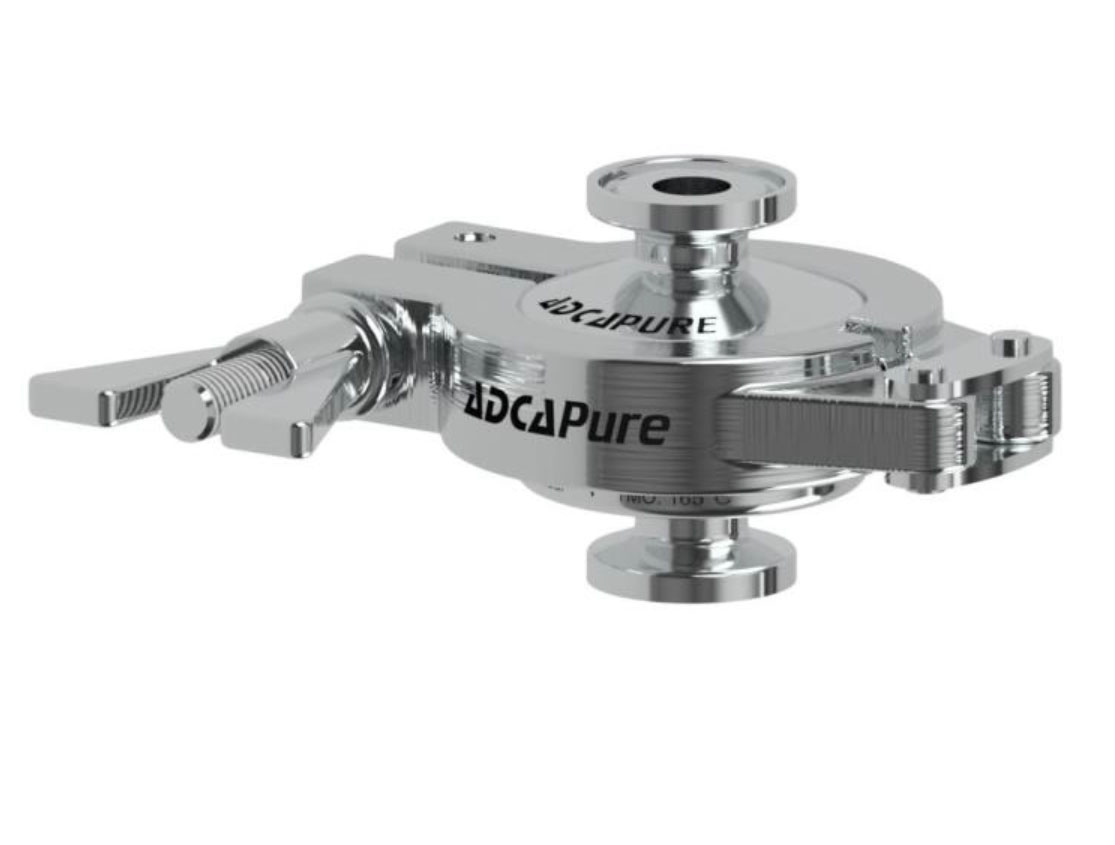

Balance Pressure TSS7

  • Overview
  • Description
  • Flowrate Capacity
•  Available Sizes : 1/2", 3/4", 1".
•  Connections : ASME BPE, DIN and ISO.Clamp ferrules or tube weld ends
Body Material : 316L ASME BPE
•  Thermostat : AISI 316 L/1.4404
•  Gaskets : PTFE/Envelope
Surface Finish : SF1,According to ASME BPE
•  PMA : 10 bar.
•  TMA : 177 "C.
The TSS7 all stainless steel thermostaticsteam traps and air ventsare specifically designed for use in reactors, sterilizers and distribution lines in clean and pure steam systems. Their small size make sthem ideal for use with a wide variety of these equipments
MAIN FEATURES
Modulating discharge.
Wide range of connections options.
Excellent air discharge.
Simple and compact design.
FLOW RATE CAPACITY (kg/h)
Model
Size
Differential Pressuse (bar)
0,2
0,3
0,5
1,0
1,5
2,0
3,0
4,0
6,0
TSS7(A) 1/2" to 1.0”
73
92
177
296
334
468
730
792
900
TSS7(B) 1/2" to 1.0” 398
475
574
656
745
820
944
1190
1436
A= Condensate dischargeat 5 C below saturation temperature. B= Cold water capacity at about 20 C
Logo FDA iso flag









We offer a full range of T-316L stainless steel clean steam thermostatic traps to handle the special requirements of clean steam systems. Different body configurations allow choice of piping and ease of cleaning. The thermostatic design is free-draining and can operate close to steam temperature at any given pressure..
