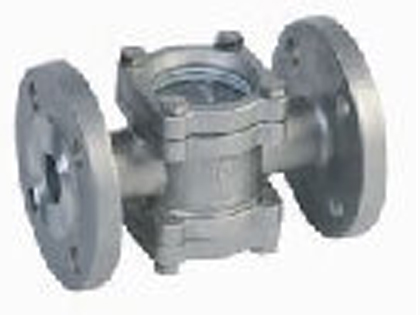

Flanged Sight Double Glass

Sight glass double glass
Construction: Body stainless steel AISI 316. Ends: flanges DIN PN-16
Glass: normal with thermal treatment .On request: "pyrex" glass.
Maximum Working Pressure: 16 kg/cm2 at 50°c.
Maximum Working Temperature: 200°C at 10 kg/cm2.

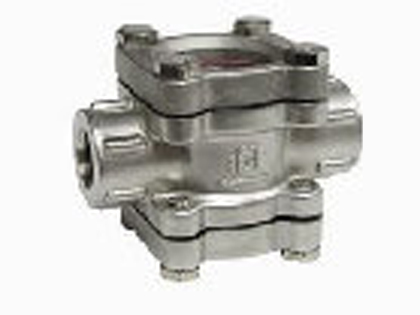

Sight Glass Double Glass -DIN 2999 threaded

Construction: Body stainless steel AISI 316. Ends: flanges DIN PN-16
Glass: normal with thermal treatment .On request: "pyrex" glass.
Maximum Working Pressure: 16 kg/cm2 at 50°c.
Maximum Working Temperature: 200°C at 10 kg/cm2.

Sight Glass Single Glass -DIN 2999 threaded

Construction: Body stainless steel AISI 316. Ends: flanges DIN PN-16
Glass: normal with thermal treatment .On request: "pyrex" glass.
Maximum Working Pressure: 16 kg/cm2 at 50°c.
Maximum Working Temperature: 200°C at 10 kg/cm2.
Safety Sight Glass  Double Glass Safety Sight Glass Safety Sight Glass iso flag EC Flag







Selection of an industrial sight glass based on the type of glass depends entirely on its application – in particular, its temperature, the reaction of its chemicals with glass, and its pressure.

Standard DIN 7080 rates borosilicate glass to 280°C (536°F)
Standard DIN 8902 rates soda lime sight glass to 150°C (302°F).
Very high temperature equipment such as ovens and furnaces may require windows made of quartz.
