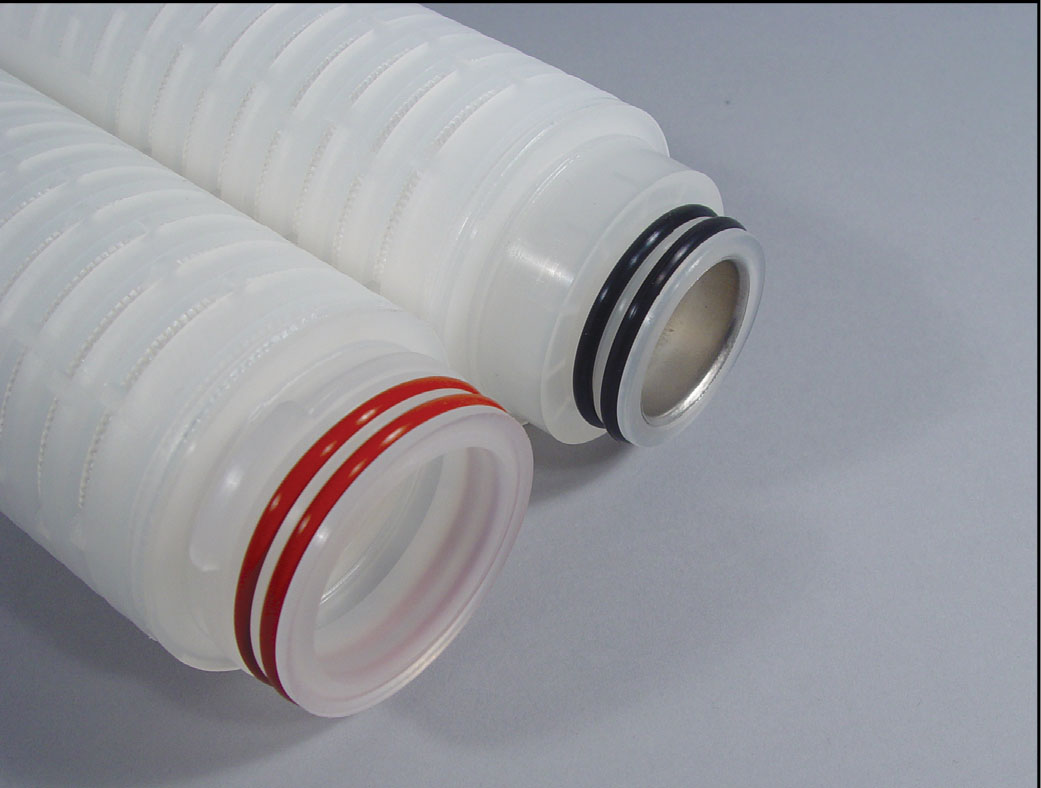

PPS-Double Layered PES Membrane

  • Overview
  • Description
  • Applications
•  Filtration Media : Double Layered Asymmetric Polyethersulfone (PES) Membrane (absolute rated)
•  Media Support : Polypropylene
End Caps : Polypropylene
•  Center Core : Polypropylene
•  Outer Support Cage : Polypropylene
Sealing Method : Thermal Bonding
•  O-rings : Buna, Viton®, EP, Silicone, FEP Encapsulated Silicone, FEP Encapsulated Viton.
•  TMA : 0.03µm,0.10µm,0.22µm,0.45µm,0.65µm,0.80µm,1.00µm,1.2µm
Pharmaceutical grade polyethersulfone PPS Filter Cartridges are sterilizing grade cartridges. The polyethersulfone (PES) membrane used in these cartridges is optimized for retention and is double layered for extra security. Polyethersulfone cartridges see broad service in sterile fill applications in SVPs and biological products. Polyethersulfone is particularly suited for the filtration of products whose constituents, such as preservatives and proteins, can adsorb to the media. The low binding characteristics of polyethersulfone make it a good choice for filtration of ophthalmics and valuable protein solutions such as vaccines and other biologicals. PPS Membrane Filter Cartridges are flushed to remove manufacturing debris and reduce extractables and are 100% integrity tested.
Diagnostics.
LVPs and SVPs.
Water for Injection.
Vaccines.
Biologicals.
Ophthalmics.
Available in various materials of construction including Hastelloy1 AL6XN2 and Titanium.
Single piece non-rotating PVDF stem with integrated tip seal.
All bodies are manufactured from BPE compliant bar stock with controlled sulfur (.005-.017%) ferrite<0.5% Fully traceable bodies insure ease of validation/documentation Surface finishes available from 25Ra to 10Ra, mechanical and electropolished 1Hastelloy is a trademark of Haynes International 2AL6XN is a trademark of Allegheny Ludlum.

PSPS-Single Layer Asymmetric PES

  • Overview
  • Description
  • Applications
•  Filtration Media : Single Layered Asymmetric Polyethersulfone (PES) Membrane (absolute rated)
•  Media Support : Polypropylene
End Caps : Polypropylene
•  Center Core : Polypropylene
•  Outer Support Cage : Polypropylene
Sealing Method : Thermal Bonding
•  O-rings : Buna, Viton®, EP, Silicone, FEP Encapsulated Silicone, FEP Encapsulated Viton.
•  TMA : 0.03µm,0.10µm,0.22µm,0.45µm,0.65µm,0.80µm,1.00µm,1.2µm
Pharmaceutical grade polyethersulfone PSPS Filter Cartridges are sterilizing grade cartridges. The polyethersulfone (PES) membrane used in these cartridges is optimized for retention. Polyethersulfone cartridges see service in sterile fill applications in SVPs and other biopharmaceutical products. Polyethersulfone is particularly suited for the filtration of products whose constituents, such as preservatives and proteins, can adsorb to the media. The low binding characteristics of polyethersulfone make it a good choice for filtration of ophthalmics and valuable protein solutions such as vaccines and other biopharmaceuticals as well as plasma fraction products. PSPS Membrane Filter Cartridges are flushed to remove manufacturing debris and reduce extractables and are 100% integrity tested.
Diagnostics.
LVPs and SVPs.
Water for Injection.
Vaccines.
Biologicals.
Ophthalmics.
Available in various materials of construction including Hastelloy1 AL6XN2 and Titanium.
Single piece non-rotating PVDF stem with integrated tip seal.
All bodies are manufactured from BPE compliant bar stock with controlled sulfur (.005-.017%) ferrite<0.5% Fully traceable bodies insure ease of validation/documentation Surface finishes available from 25Ra to 10Ra, mechanical and electropolished 1Hastelloy is a trademark of Haynes International 2AL6XN is a trademark of Allegheny Ludlum.

PTM-PTFE Membrane

  • Overview
  • Description
  • Applications
•  Filtration Media : Polytetrafluoroethylene (PTFE) (absolute rated)
•  Media Support : Polypropylene
End Caps : Polypropylene
•  Center Core : Polypropylene
•  Outer Support Cage : Polypropylene
Sealing Method : Thermal Bonding
•  O-rings : Buna, Viton®, EP, Silicone, FEP Encapsulated Silicone, FEP Encapsulated Viton.
•  TMA : 0.10µm,0.22µm,0.45µm,1.00µm,3.00µm,5.00µm
PTM Membrane Filter Cartridges are sterilizing grade filters manufactured with inherently hydrophobic polytetrafluoroethylene (PTFE) membrane. These cartridges are designed for use in the filtration of aggressive solvents and as compressed gas and vent filters. Each cartridge module is individually tested using the water intrusion method before it is released from manufacture. The cartridge surface area, filter core design, pleat configuration, and pleat packing density have been optimized to provide increased cartridge life and lower filtration operating costs. Rugged construction ensures repeatable steaming and testing.
Diagnostics.
LVPs and SVPs.
Water for Injection.
Vaccines.
Biologicals.
Ophthalmics.
Available in various materials of construction including Hastelloy1 AL6XN2 and Titanium.
Single piece non-rotating PVDF stem with integrated tip seal.
All bodies are manufactured from BPE compliant bar stock with controlled sulfur (.005-.017%) ferrite<0.5% Fully traceable bodies insure ease of validation/documentation Surface finishes available from 25Ra to 10Ra, mechanical and electropolished 1Hastelloy is a trademark of Haynes International 2AL6XN is a trademark of Allegheny Ludlum.

PTM/HT-PTFE Membrane

  • Overview
  • Description
  • Applications
•  Filtration Media : PTFE Membrane (absolute rated)
•  Media Support : Polypropylene
End Caps : Polypropylene
•  Center Core : Polypropylene
•  Outer Support Cage : Polypropylene
Sealing Method : Thermal Bonding
•  O-rings : Buna, Viton®, EP, Silicone, FEP Encapsulated Silicone, FEP Encapsulated Viton.
•  TMA : 0.10µm,0.22µm,0.45µm,1.00µm
PTM/HT Membrane Filter Cartridges are sterilizing grade filters manufactured with inherently hydrophobic polytetrafluoroethylene (PTFE) membrane. These cartridges are designed for use in elevated temperature applications for the filtration of aggressive solvents and as compressed gas and vent filters. Each cartridge module is individually tested using the water intrusion method before it is released from manufacture. The cartridge surface area, filter core design, pleat configuration, and pleat packing density have been optimized to provide increased cartridge life and lower filtration operating costs. Rugged construction ensures repeatable steaming and testing.
Compressed Air .
Fermentation Air.
Solvents.
Pressurized Gases.
Tank Ventilation.
Available in various materials of construction including Hastelloy1 AL6XN2 and Titanium.
Single piece non-rotating PVDF stem with integrated tip seal.
All bodies are manufactured from BPE compliant bar stock with controlled sulfur (.005-.017%) ferrite<0.5% Fully traceable bodies insure ease of validation/documentation Surface finishes available from 25Ra to 10Ra, mechanical and electropolished 1Hastelloy is a trademark of Haynes International 2AL6XN is a trademark of Allegheny Ludlum.

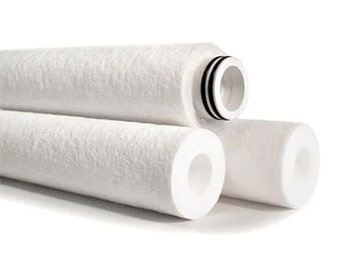

ProClean Melt Blown Filter Cartridge

  • Overview
  • Description
  • Applications
•  Filtration Media : Polypropylene
•  Inner Diameter : 28mm; 30mm
End Caps : DOE; SOE; 222/fin; 226/fin; 222/flat; 226flat
•  Center Core : Polypropylene; None
•  Seal Ring/Gasket : EPDM/Viton/Silicone/Buna N
Surface(Optional) : Flat; Groove; Micro Wave; Orange skin
•  Pressure change-out : 1.5-1.8bar.
•  TMA : 0.10µm -200µm
100% polypropylene for compatibility with a wide range of process fluids.
Micro-denier melt-blown filtration fiber, high removal ratings.
Formed by thermal bond without use of any binders and adhesives.
Certified by FDA CFR Title 21.
In compliance with EU Directive 2002/72/EC for plastic in food contact.
Filtration efficiency: 90% cut off @1µm; 95% cut off @5µm; 98% cut off @ 10µm
3-layers structure cartridge, high contaminant holding capacity, longer service life.
Filtration of process water and recycled water. .
Filtration of medium & low viscosity chemical fluids..
Pre-filtration of DI & RO water filtration system for industry usage.
Filtration of electroplating fluid in conventional electroplating industry.
Filtration of etching, and image development process solution in PCB industry
Logo FDA iso flag









Polyethersulfone (PES)

Highly Asymmetric PES
Allows high flows with low pressure drops. The highly asymmetric structure also allows the membrane to efficiently capture a large amount of different size particles throughout the membrane matrix while still providing a sharp retention cutoff. Available in positively charged options. With higher flow than our charged nylon, our positively charged PES can remove negatively charged particles like endotoxins, organic molecules and colloids.>
