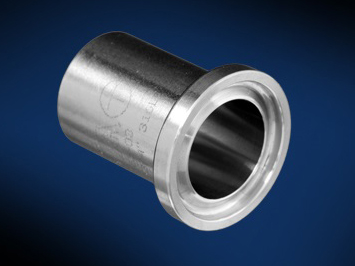

ASME-BPE Long Weld Ferrules

•  Available Sizes : 0,50"-0,75"-1,00"-1,50"-2,00"-2,50"-3,00"-4,00"-6,00".
Polishing : SF1..SF4
•  Tolerances : ASME BPE TABLE #DT-4.1.4-1
•  Material : AINSI 316 L BPE (Low Sulfur)
•  Certifications : ASME BPE TABLE #DT-4.1.4-1

ASME-BPE Medium Length Weld Ferruls

•  Available Sizes : 0,50"-0,75"-1,00"-1,50"-2,00"-2,50"-3,00"-4,00"-6,00".
Polishing : SF1..SF4
•  Tolerances : ASME BPE TABLE #DT-4.1.4-1
•  Material : AINSI 316 L BPE (Low Sulfur)
•  Certifications : ASME BPE TABLE #DT-4.1.4-1

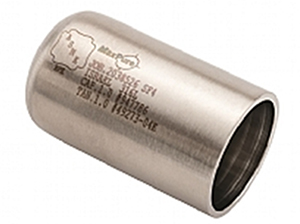

ASME- BPE Solid End Cup

•  Available Sizes : 0,50"-0,75"-1,00"-1,50"-2,00"-2,50"-3,00"-4,00"-6,00".
Polishing : SF1..SF4
•  Tolerances : ASME BPE TABLE #DT-4.1.5-2
•  Material : AINSI 316 L BPE (Low Sulfur)
•  Certifications : ASME BPE TABLE #DT-4.1.5-2

Tube Weld End Cap DT-4.1.5-1

•  Available Sizes : 0,50"-0,75"-1,00"-1,50"-2,00"-2,50"-3,00"-4,00"-6,00".
Polishing : SF1..SF4
•  Tolerances : ASME BPE TABLE #DT-4.1.5-1
•  Material : AINSI 316 L BPE (Low Sulfur)
•  Certifications : ASME BPE TABLE #DT-4.1.5-1

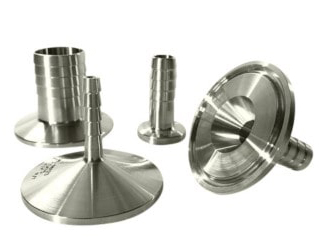

Hose Barbs

•  Available Tri Clamp Sizes : 0,50" -0,75" -1,00" -1,50" -2,00" -2,50" -3,00" -4,00".
Available Hose Barb Sizes : 0,25"-0,50" -0,75" -1,00" -1,50" -2,00" -2,50" -3,00" -4,00".
•  I.D Polishing : SF1, SF4
•  Material : AINSI 316 L
•  Certifications : ASME BPE
ASME BPE FERRULE FOR PHARMACEUTICAL MEDICAL APPLICATION  cosmetic ferrule Mirror Polishing tee for ordital welding tri clamp sanitary tee iso flag







ANOMALY OR INIDICATION
•  Cluster of pits . None accepted
•  Grit lines If Ra is met.
•  Nicks None accepted.
•  Oxides None accepted.
•  Pits If dia. < 0.020" and bottom is shiny.
•  Star burst . None accepted.
•  Scratches If lenght < 0.25", depth < 0.003" and Ra is met.
•  Surface craks None accepted.
•  Surface residuals None accepted.
